IP Hydraulic Press

back

Description

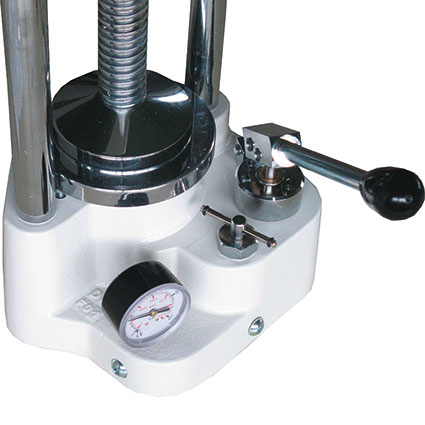

Hydraulic press, clamps up to three cuvettes. The operational elements are robust and arranged clearly. Able to hold also larger cuvettes. It reaches a maximum pressure of 400 bar and can exert a maximum force of 15.000 kg onto the cuvettes. The oil circuit is completely closed, so the press requires no maintenance at all. In order to not damage the cuvettes a maximum pressure of 250 kg / cm must not be exceeded.

Accessories

Working pressure
max. pressure
max. pract. power
Piston stroke
L x W x H
Weight
200 Bar
400 Bar
15000 KG
25 mm
215x190x470mm
20 KG
